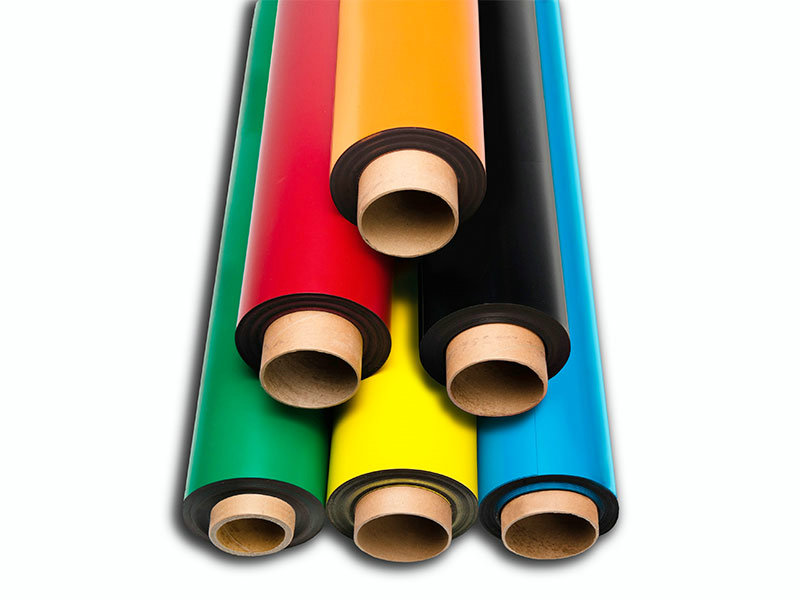

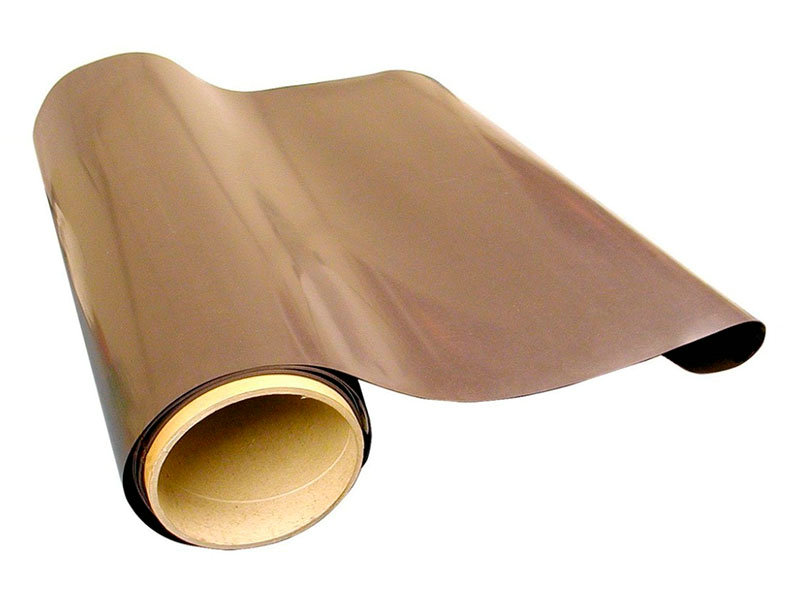

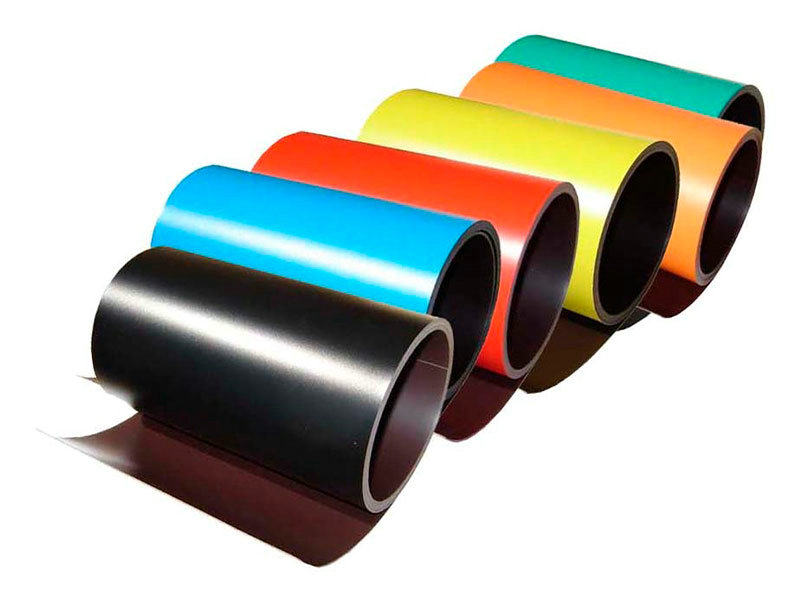

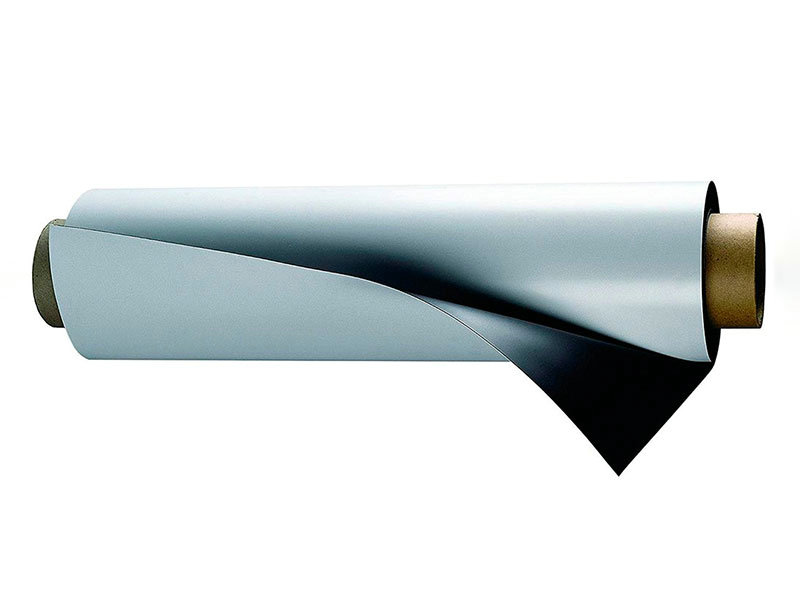

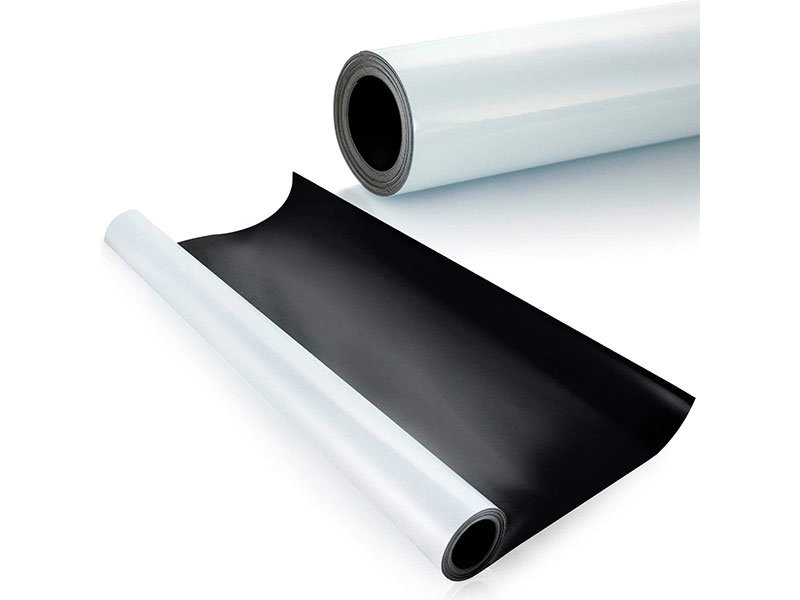

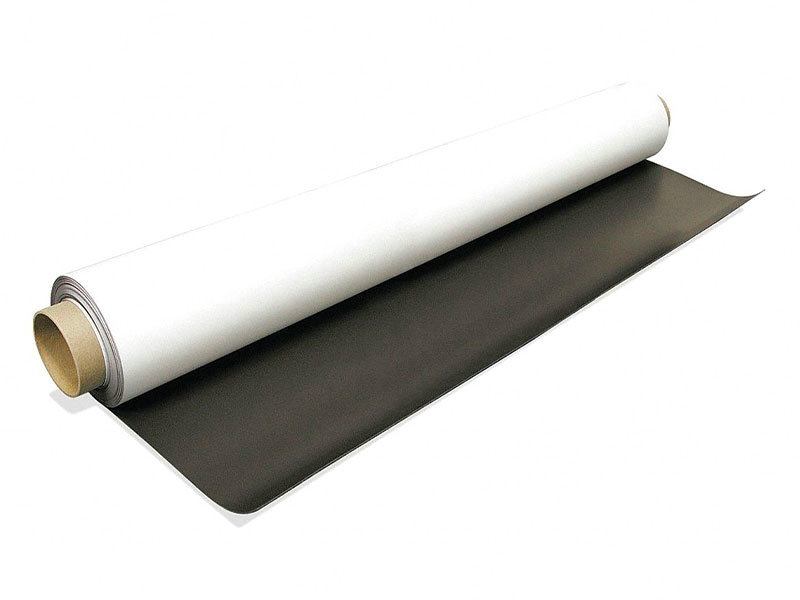

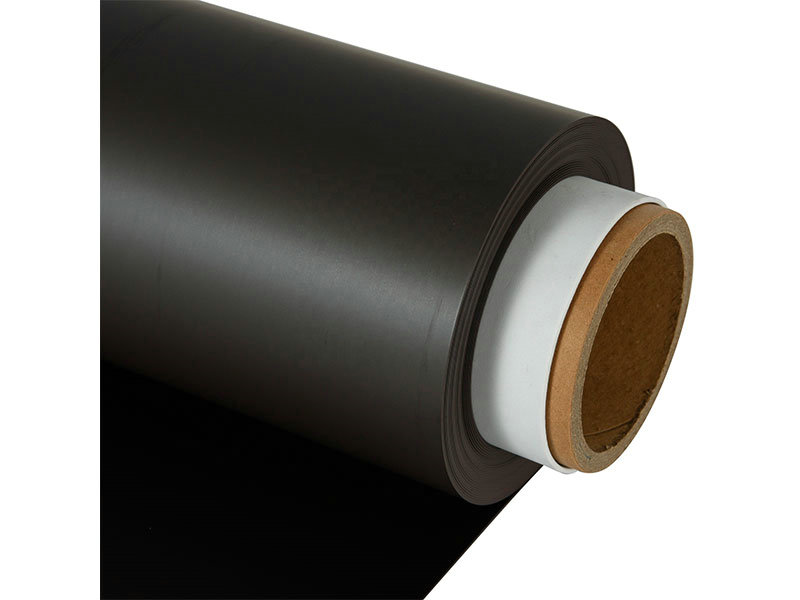

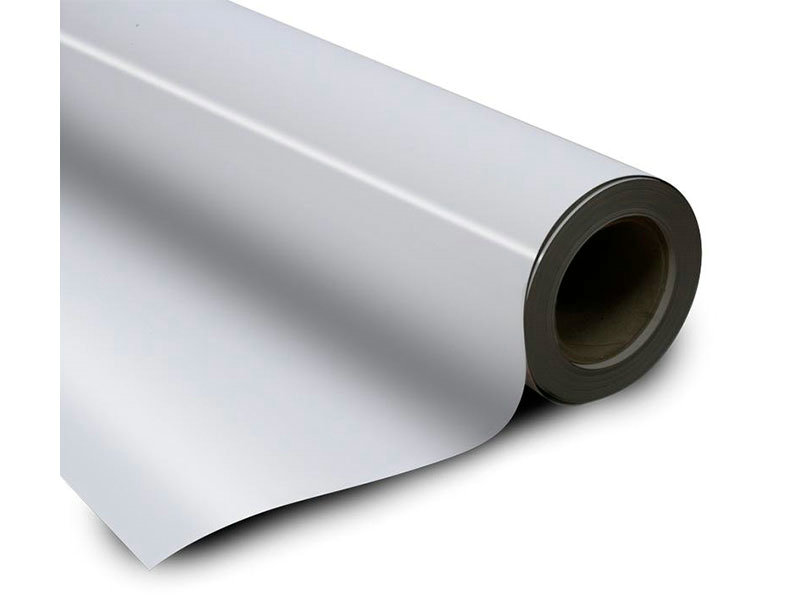

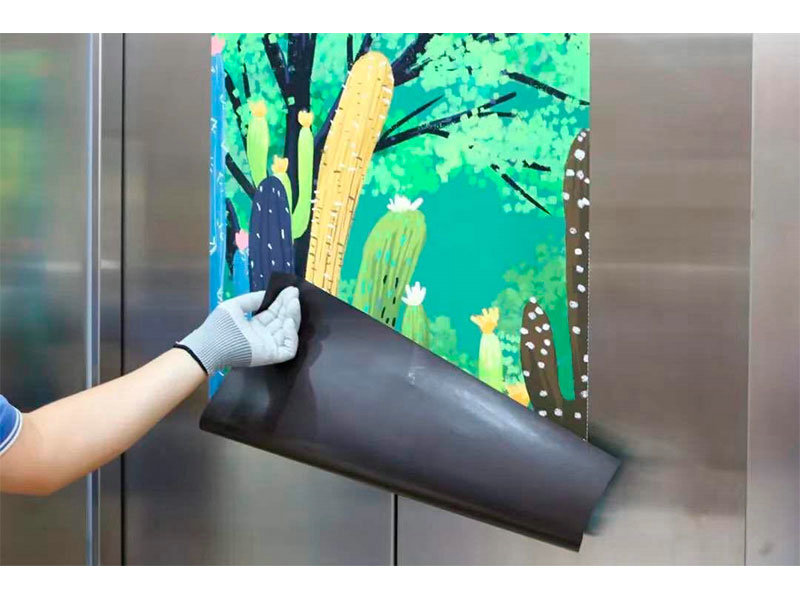

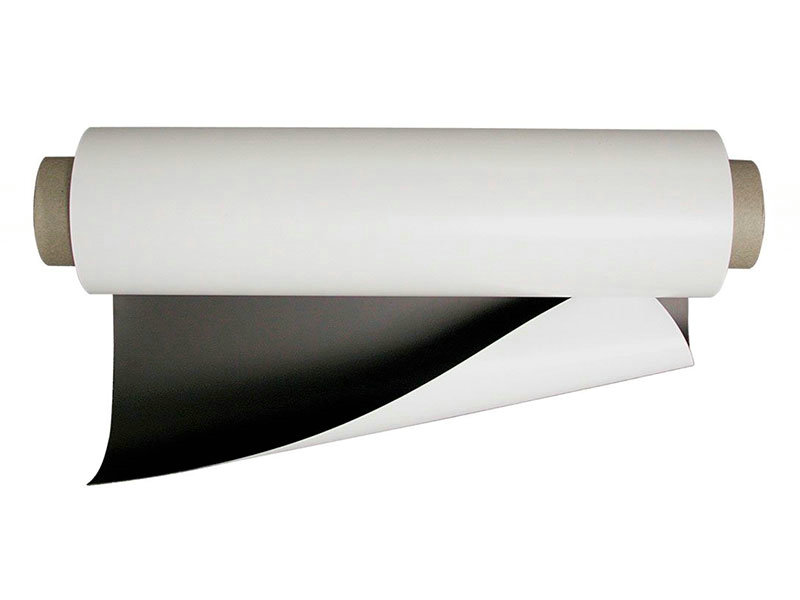

This product is a flexible magnet material with PVC/Vinyl laminate, which is suitable for direct Solvent solvent Inkjet printing. This item provides an easy and efficient way to make magnetic posts, car signs, as well as a host of other promotional products. The solvent Inkjet Magnet is great for indoor use and outdoor use, and is compatible with most Solvent Inkjet printers which use full solvent , Eco-solvent , latex , UV ink.
Suitable for Printing Process
Ink jet Printing with most Solvent ink
Silk Screen Printing
Hot Foil Stamping Printing
Pad Printing
COMPONENT
ISOTROPIC STRONTIUM FERRITE(Sr0.6Fe 2 O 3 ) BONDED FLEXIBLE MAGNET.
MAGNETIC PROPERTIES
Maximum Energy Product (Bd Hd max x 10 6 )..... 0.65-0.78
Residual Induction Br (gauss) ................................. 1800
Coercive Force Hc (oersteds) .................................. 1450
Intrinsic Coercive Force Hci (oersteds) ................... 2450
PHYSICAL PROPERTIES TYPICAL
Flexibility : Can be coiled to a 1/2" radius without cracking at 68째 F
Hardness : Shore D35
Machinability : Die cutting, Knifecutting, etc. cleanly and with ease.
Specific Gravity : 3.5
Magnetic Performance
| Grade | Max magnetic energy | Remanence Magnetism | Coercivity | Intrinsic Coercivity | ||||
| (BH)MAX | BR | HCB | HCB | |||||
| MGOE | KJ/M3 | KGS | MT | KOE | KA/M | KOE | KA/M | |
| Isotropic | 0.5-0.7 | 4.0-5.6 | 1.5-1.7 | 150-170 | 1.2-1.4 | 95-111 | 1.9-2.0 | 151-159 |
| Isotropic | 1.3-1.6 | 10.4-12.8 | 2.3-2.6 | 230-260 | 2.1-2.3 | 167-183 | 2.4-3.5 | 191-278 |
Hot Sale Performance
Thinkness (mm) | Width (mm) | Length (m) | Weight (kg) | Magnetic Force(g/cm2) | Magnetic Surface(Gs) | ||
| Isotropic | An-isotropic | Isotropic | An-isotropic | ||||
| 0.3 | 1270 | 15 | 23 | 竕･12 | 竕･15 | 185 | 205 |
| 1200 | 15 | 22 | |||||
| 610 | 30 | 22 | |||||
| 0.4 | 1200 | 15 | 28 | 竕･18 | 竕･20 | 225 | 310 |
| 610 | 30 | 28 | |||||
| 0.5 | 1200 | 15 | 35 | 竕･25 | 竕･45 | 240 | 330 |
| 610 | 30 | 35 | |||||
| 0.6 | 1200 | 10 | 28 | 竕･30 | 竕･52 | 260 | 340 |
| 610 | 20 | 28 | |||||
| 0.8 | 1200 | 10 | 37 | 竕･42 | 竕･75 | 300 | 430 |
| 610 | 15 | 28 | |||||
| 1.0 | 1200 | 10 | 46 | 竕･51 | 竕･85 | 320 | 480 |
610 | 15 | 35 | |||||
